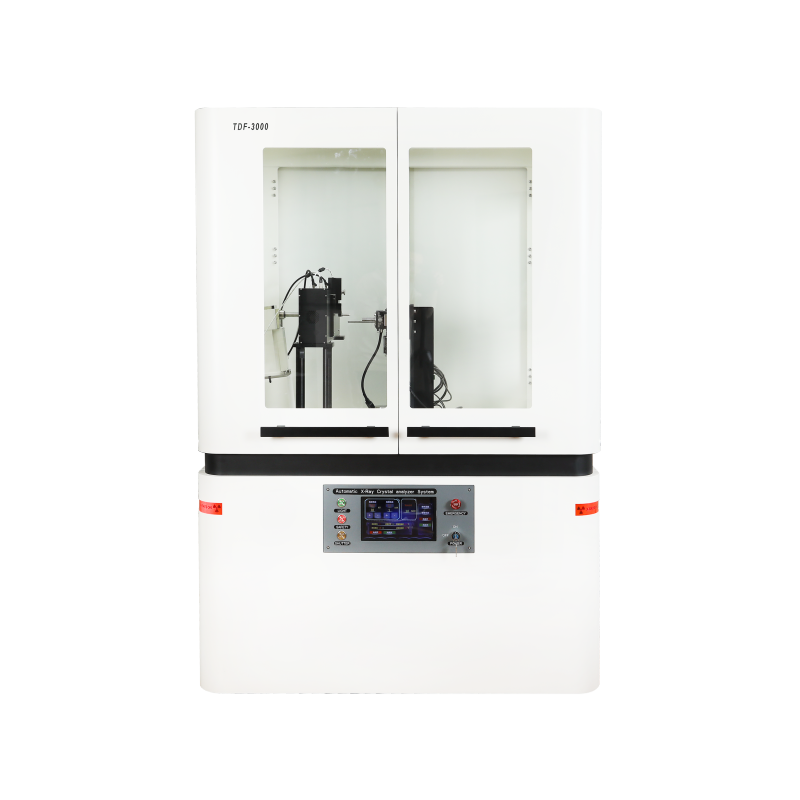

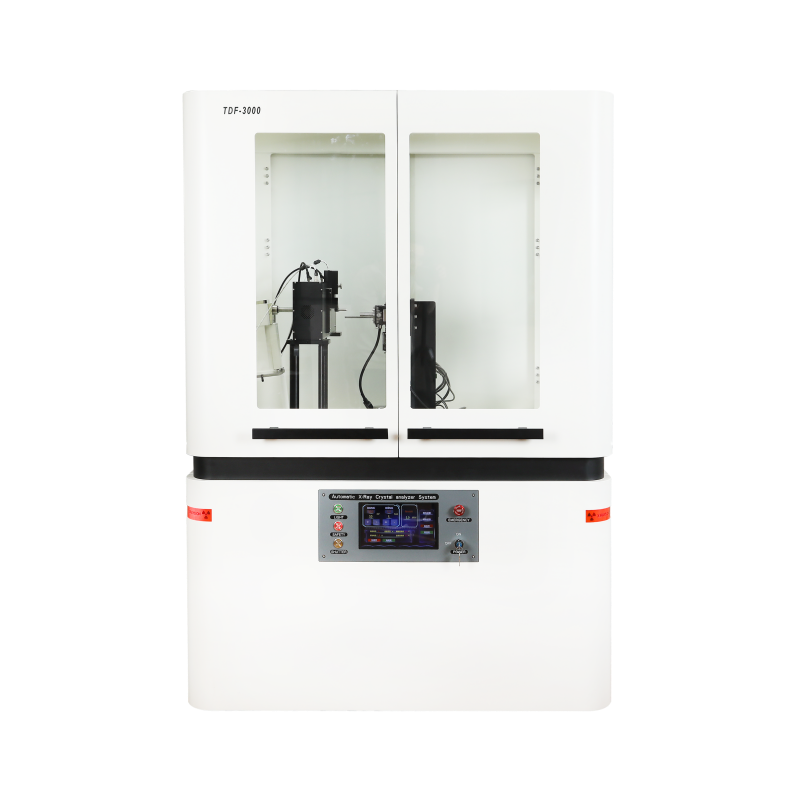

Analyseur de cristaux à rayons X série TDF

1. L’instrument à rayons X est facile à utiliser et rapide à détecter.
2. L'instrument à rayons X est précis et fiable, avec d'excellentes performances.
3. L'instrument à rayons X dispose de divers accessoires fonctionnels pour répondre aux besoins de différents tests.

  • Tongda
  • Liaoning, Chine
  • 1 à 2 mois
  • 100 unités par an
  • information

Introduction of TDF Series X-ray Crystal Analyzer:


Overview

TD series X-ray Crystal Analyzer is a kind of large-scale analytical instrument for studying the internal microstructure of materials. It is mainly used for single crystal orientation, defect inspection, lattice parameter measurment, residual stress measurement, structure study of bar, structure study of unknown subatance and single crystal dislocation.


Characteristics

TD series x-ray crystal analyzer uses vertical sleeves, and four windows can be used at the same time. The imported PLC control technology has high control precision and good anti-interference,  which can realize the reliable operation of the system. PLCmbe erectreconurors the switching and lfting of high voltage. lt has the function of automatically training x-ray tube, effectively prolonging the service life of x-ray tube and instrument.

                                                                        X-ray Crystal AnalyzerX-ray Crystal Analyzer


High voltage generator (controlled by imported PLC) of X-ray crystal analyzer

Tube voltage10-60kv
Tube current2-60ma
stability of tube voltage and tube current<0.005%
Rated output power3Kw
featuresWith no pressure, overvoltage, no ma, over power, no water, X-ray tube overtemperature protection
Power range can be set by PLC text display
Working time setting range0-999min


X-ray tube:

  • Rated power: 2KW

  • Focus point size (mm²) : point focus (1*1) ; line focus (1*10)

  • Target materials: Cu, Co, Fe, Cr, Mo, W, etc

x-ray


X-ray camera:

  • Laue camera (large and small powder)

  • Flat panel camera

  • 3D sample table

  •  Multiwire camera USA

x-ray instrument




Quality assurance and after-sales service commitment:

1. Customer service concept

Dandong Tongda Technology Co., Ltd. emphasizes the customer service concept of “customer needs as the starting point” and strengthens the customer service system. Our services go beyond the traditional response support concept for troubleshooting, from planning, design to implementation, providing systematic, reasonable, effective and end-to-end services to help users master and utilize new products, new technologies, and comprehensive Improve the actual use value of products, improve user productivity and service standards.


2. Customer Service System

In order to provide users with the highest quality service, Tongda Technology regards service as the most important product, establishes a complete and scientific service management specification, and strives to make the service professional, diversified and hierarchical, providing users with Long-term, comprehensive technical support and services including technical consulting, engineering

implementation, and professional training. Customer service runs through the entire process of pre-sale, sale and after-sales.
